Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems

Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems

    • Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems
    • Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems
  • Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: RONA
    प्रमाणन: CE / ISO9001
    Model Number: RNCF1066 / RNCF1066S

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 unit
    मूल्य: negotiation
    Packaging Details: carton and wooden packing
    प्रसव के समय: 7-15 कार्य दिन
    Payment Terms: T/T, Western Union
    आपूर्ति की क्षमता: प्रति माह 2,000 इकाइयों
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    ढांचा सामग्री: 304 # स्टेनलेस स्टील प्लाई की मोटाई: 1.3 मिमी या 1.7 मिमी
    समाप्त: ब्रश की सतह या चमकाने वाली सतह आयाम: 1210L * 310W * 1000H मिमी
    रपट की सामग्री: टेम्पर्ड ग्लास स्लाइडिंग लंबाई बाहर खींच: 230 ~ 235mm

    Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems




    It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.


    -> Single-core mechanism: RNCF1066

    The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.

    -> Dual-core mechanism: RNCF1066S

    The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



    Product Name

    Sliding Gate Turnstile





    Single-core mechanism

    Dual-core mechanism


    304# Stainless Steel (default)

    Thickness of ply



    brushed surface, polishing surface or anti-fingerprint surface (optional);

    Size (L*W*H)

    1210mm*310mm*1000mm (default)

    Material of flap

    Tempered glass

    Stretching-out flap length


    Height of Sliding Gate

    max of 1500mm (optional)

    Machine center

    Germany technological motor

    Power voltage

    AC220V±10%, 50Hz±10%

    Driver motor

    DC Stepper motor

    Main-board voltage

    12V DC

    In-built Infrared

    6 pairs/lane

    Passing speed

    30 persons/min

    Passage Width


    Opening / closing time

    0.6 seconds

    The time required to running state after power on

    3 seconds

    Automatic reset time after the failure

    10 seconds

    Mean time to failure

    min. 5 000 000

    Operation temperature

    -10℃ ~ +70℃

    Relative humidity

    less than 95% not condensed

    Working Environment

    Indoor/Outdoor (with rain-tent cover)

    Input port

    relay dry contact signal; +12V level signal or DC12V pulse signal

    Communications port

    RS232/ RS485 electric standard, communications range≤1200m.


    12 months

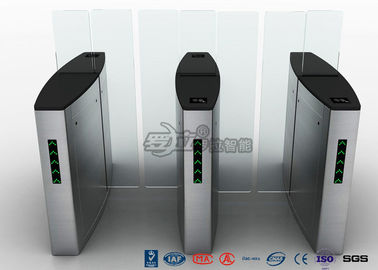

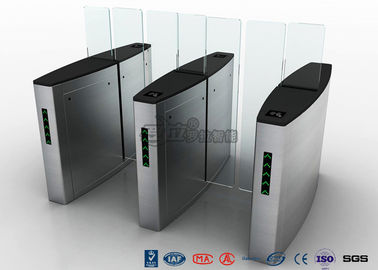

    The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.


    The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.


    The sliding gate turnstile provides bi-directional and unidirectional access control and free passage modes (described below). In access control mode, upon receipt of a valid card signal from an access control system, the motorized barrier slidings of the turnstile quickly retract into the cabinet, and the integrated sensors allow a single user to pass through the turnstile in the requested direction. If an unauthorized user attempts to tailgate on the entry, the unit will recognize the illegal passage, a violation alarm (with user configurable sounds) will sound, or red notification lights will flash.


    As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.



    Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.



    • -> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.

    • -> The running status of device can be set up through pressing the built-in small keyboard of the main control board.

    • -> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.

    • -> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.

    • -> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.

    • -> Acoustic signal for announcement of unauthorised use.

    • -> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.

    • -> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);

    • -> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

    • -> Standard fire alarm input interface, requires N.C normally close contact.

    • -> The turnstile system can easily integrates with the 3rd party equipment with read facilities, such as biometric reader, consumption system, ESD system and access control system etc.

    • -> The turnstile system can be hooked up with multiple reader equipments together. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card, fingerprint and face detection etc.

    • -> Operation model: Both direction can be set as controlled mode, free mode or disable model, two or one direction can be controlled by switch- button or access controller. (Free model means automatic open by infrared beam detecting, controlled model means use valid access controller signal to open, disable model means forbidding anyone pass thru).

    • -> Direction indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

    • -> With normally open & normally closed working mode available.

    • -> Through the management computer to realize remote control and management.

    • -> Approved CE certificate



    The turnstile provides bi-directional access control. Each direction may be in one of three states:

    • -> Free passage: all person are authorized to pass under all conditions

    • -> Controlled access: each person must use a card reader before being authorized to pass

    • -> Lane closed: no persons are authorized to pass, and security cards are ignored



    The manufacturer guarantees that the turnstile complies with applicable statutory safety and electromagnetic requirements provided that the instructions on storage, installation and operation are observed.

    The warranty period is 12 (twelve) months commencing from the date of sale.
