Retractable Optical Turnstile Security Systems Electric For Airports Access

सुरक्षा Turnstiles

barrier turnstile

Place of Origin:

China

ब्रांड नाम:

RONA

प्रमाणन:

CE / ISO9001

Model Number:

Customized

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद का विवरण
सामग्री::
304 # स्टेनलेस स्टील
पैसेज की चौड़ाई:
550mm
बिजली का वोल्टेज:
AC220V 220 10%, 50Hz ± 10%
संचार बंदरगाह::
RS232 / RS485
इनपुट पोर्ट::
relay dry contact signal; रिले शुष्क संपर्क संकेत; +12V level signal and pulse widt
काम का माहौल::
इनडोर / आउटडोर (बारिश के तम्बू कवर के साथ)
सापेक्षिक आर्द्रता:
95% से कम संघनित नहीं है
किसी डिवाइस का ऑपरेशन समय समाप्त होने की अवधि:
5 000 000
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity
1 Lane
मूल्य
negotiation
Packaging Details
carton and wooden packing
प्रसव के समय
7-15 कार्य दिन
Payment Terms
T/T,
आपूर्ति की क्षमता
प्रति माह 2,000 इकाइयों
उत्पाद का वर्णन

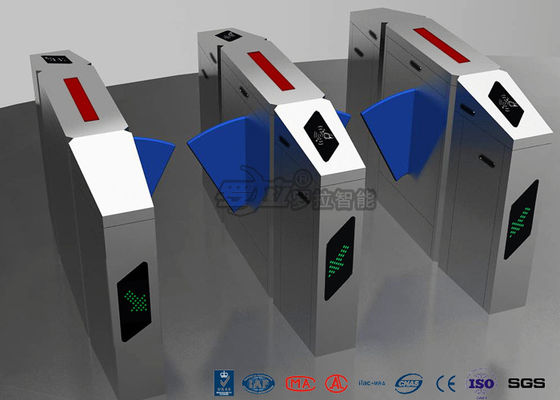

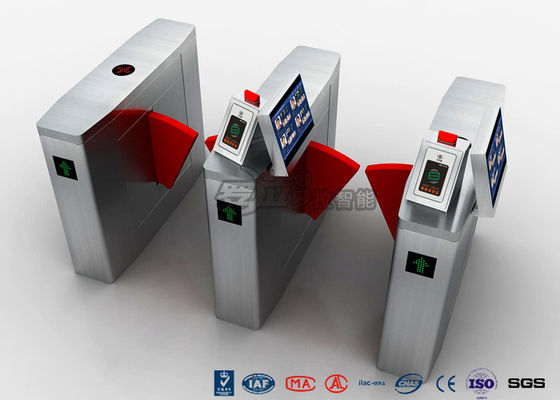

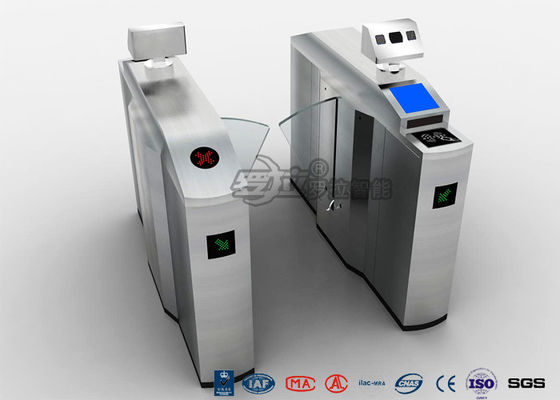

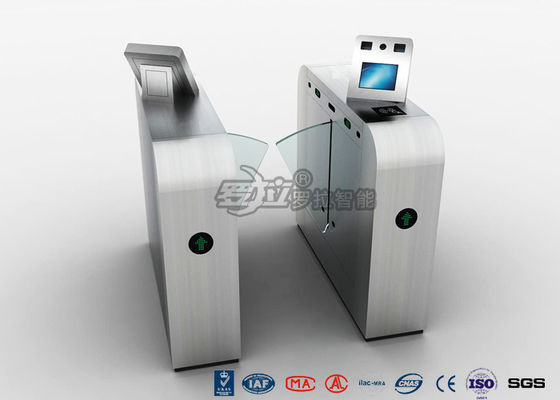

Retractable Optical Turnstile Security Systems Electric For Airports Access​





PRODUCT DESCRIPTIONS:

The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.


The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.




SPECIFICATIONS:

Model

Customized

Customized

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

Customized

Material of flap

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length

230~235mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.



Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Stepper motor

Main-board voltage

12V DC

In-built Infrared

7 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

Warranty

12 months



APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
